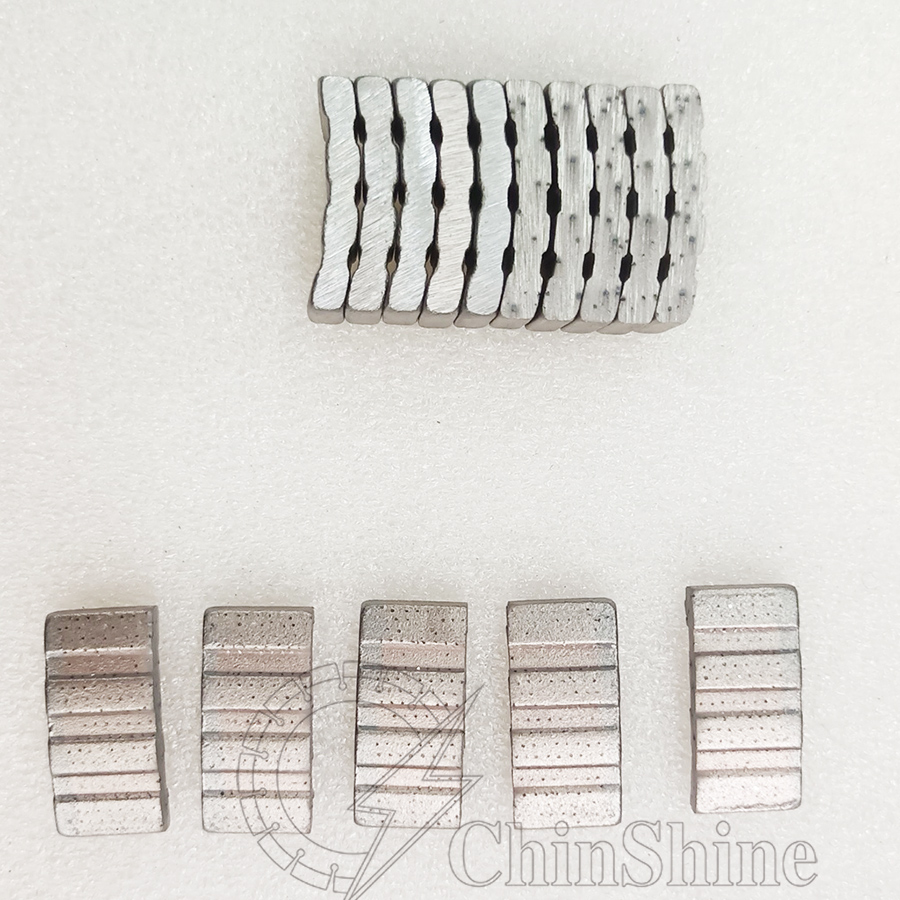

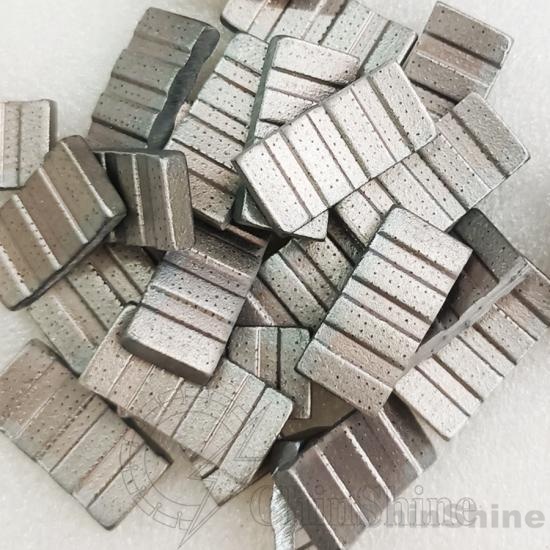

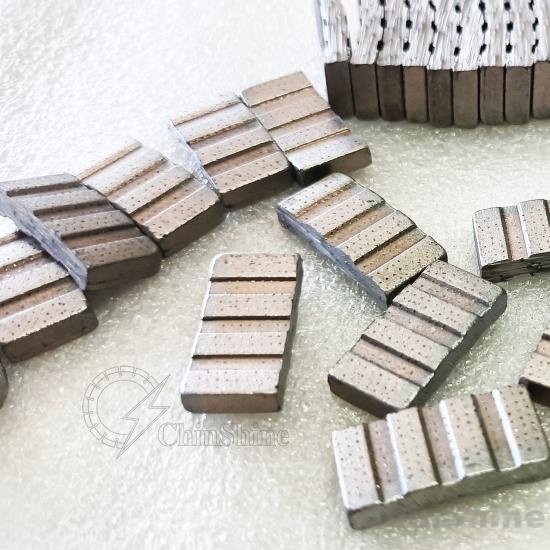

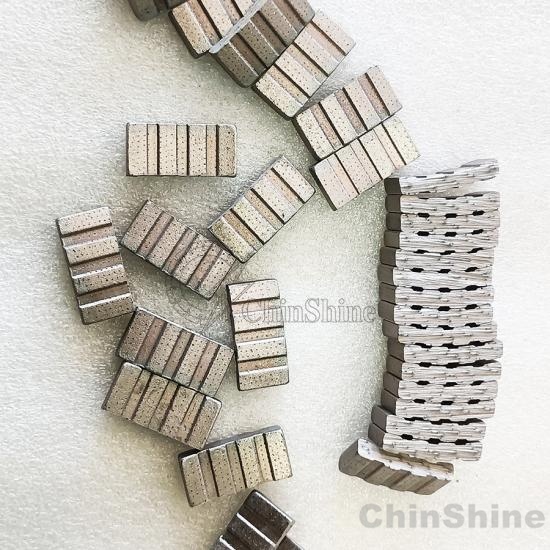

Power and Efficiency Turbo Arix Diamond Core Drill Bit Segment for Fast Drilling Reinforced Concrete

Advantages of ChinShine Turbo Arix Segment:

1. High-Quality Diamond and Segment Formula

ChinShine blades are embedded with high-concentration, high-strength diamond particles. As the hardest substance in the world, these diamonds act as the "teeth" responsible for the actual cutting. The Turbo Arix utilizes sharp and evenly distributed diamond particles.

2.Optimized Matrix

The matrix is the metal bond that encapsulates and secures the diamond particles. The matrix of the Turbo Arix is designed to wear at a moderate rate, continuously exposing new, sharp diamond particles. This ensures the blade maintains sharp cutting performance throughout its entire service life. If the matrix is too hard, worn-out diamonds won't shed, causing the blade to become "glazed" and ineffective. If it's too soft, diamonds may fall off prematurely, significantly reducing the blade's lifespan. The Turbo Arix achieves a perfect balance between these two extremes.

3. Advantages of the "Turbo" Design

Excellent Debris Removal Capability: The turbo-shaped segments generate airflow like a fan when rotating at high speeds, rapidly expelling powder and debris from the cut.

Effective Heat Dissipation: The efficient removal of debris also carries away a significant amount of heat generated during cutting, preventing damage to the blade and material caused by overheating. Excessive heat can soften the blade's matrix and oxidize the diamonds, leading to rapid dullness. Reduced Clogging:

The open turbo structure is less prone to clogging from slurry during wet cutting or powder during dry cutting, ensuring consistent and efficient cutting performance.
