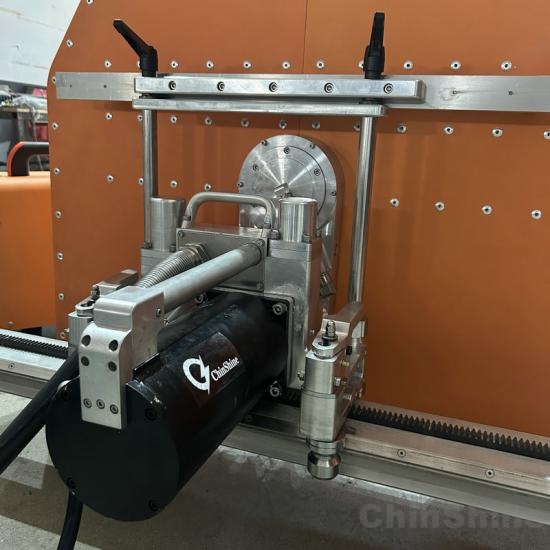

Precision High-Efficiency Track Saw Machine for Reinforced Concrete Walls & Structures

- Motor Power: 25 kW
- Power Source: Electric
- Rated Voltage: 380V / 220V
- Blade Diameter: ≤1400 mm
- Traveling Speed: 1 m/min
- Cutting Efficiency: 2-6 m²/h
- Control Unit Weight: 17.5 kg
- Saw Head Weight: 36 kg
- Track Weight: 8.4 kg/m
- Total Weight: 110 kg
- Track Size: 1 m / 2.1 m
- Dimension: 466(L) × 241(W) × 446(H) mm

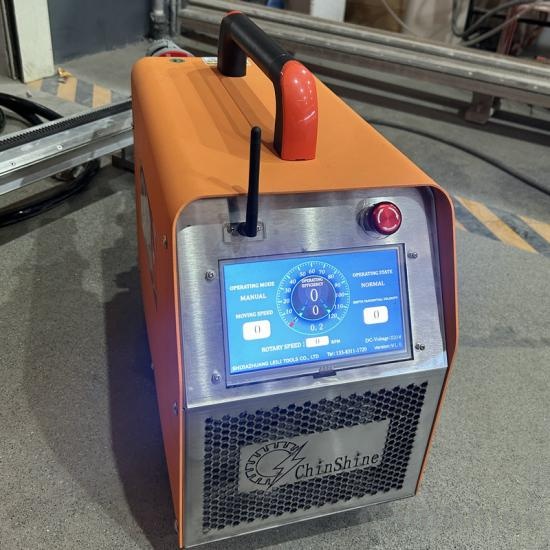

- Remote Control: Wireless

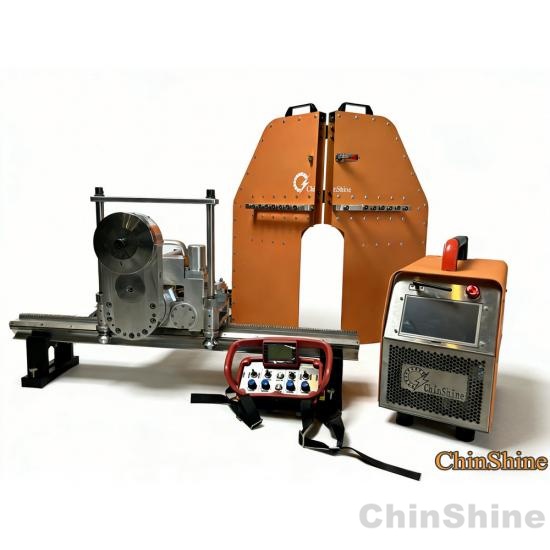

- Composition: High-frequency motor, saw head, remote-control unit, track, cable
- Materials Used: Motor, electric cable, iron
- Performance: Fast cutting for concrete demolition
- Certifications: CE, ISO
- Warranty and Maintenance: 1 year warranty; maintenance must follow the product manual

order(moq):
1

inquiry now

product detail

D600-1400mm Reinforced Concrete Wall & Track Saw Cutting Machine

Powered by a robust 25kW motor, this electric wall saw delivers a powerful output current of 38A and supports blade diameters up to 1400mm. With a cutting efficiency of 2–6m²/h and a steady traveling speed of 1m/min, it rapidly cuts through reinforced concrete, significantly reducing project time.

Quality is built into every detail. The compact, fully integrated design features a tool-free, quick-mounting system for fast setup. The lightweight yet durable tracks and blade guard ensure stability under heavy loads. An intuitive wireless remote control includes over-heat and over-load protection, safeguarding both machine and operator.

Weighing only 110kg in total, with CE and ISO certifications, this machine combines portability with industrial-grade reliability. Whether for demolition or construction, enjoy worry-free operation backed by a 1-year warranty.
