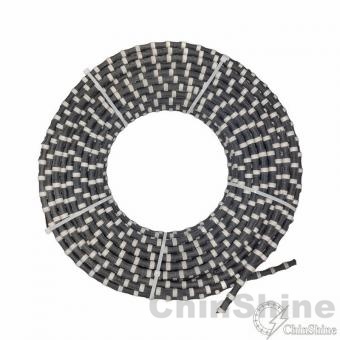

Stone diamond wire for cutting granite marble block

ChinShine stone diamond wire for cutting granite/marble ensure a good efficiency, high productions and stable performances in time, minimizing the costs of processing.
  • brand:

    ChinShine
  • order(moq):

    15 meters
  • product origin:

    Quanzhou, China
  • lead time:

    7-25 days
  • Welding

    Sintering/Hot Press
  • OEM Service:

    Yes
  • Advantage:

    Sharp, Long life, Stable Cutting
  • Related Name:

    granite diamond wire saw, stone diamond wire saw rope, marble diamond wire
  • product detail

Stone diamond wire for cutting granite marble block

ChinShine, a high speed developing manufacturer and supplier of diamond wires in China, our diamond wires include various sizes and different specifications that are applicable to a variety of purposes, like granite and marble stone mining, stone block shaping and profiling, concrete sawing cutting, and more...


Plastic diamond wire is usually for cutting stone block to pieces, shaping and profiling. The high cutting performances are guaranteed by the quality of the diamond beads and strong plastic. The optimizations of the productive process of the diamond wire allowed to improve the efficiency of the cut, while guaranteeing the speed performance and the required precision.Therefore, ChinShine stone diamond wire for cutting block has became of of the best quality in China.


Smaller diameter of diamond beads allows to reduce the processing waste, reduce energetic consumption increasing the efficiency if the process and to minimize the quantity of the raw material processed.


The quality of ChinShine stone diamond wire for granite marble is at the same quality level with Italy, but the price is only 60% of Italian prices. Compared with Turkey Stone diamond wire, ChinShine diamond wires are 50% higher in cutting efficency.

Plastic stone diamond wire for block cutting

Bead Dia.(mm)

Fixed by

Beads No./m

Remark

Note

Ø10.5

High Strength Plastic

37/40

Sintered


Ø11.0

Cutting material

Line speed(m/s)

Cutting speed(㎡/h)

Cutting life(㎡/m)

Soft granite

30-35

1.5—3.0

18—28

Mid-hard granite

23-30

1.2—2.5

14—18

Hard granite

20-28

0.7—1.2

8—14
